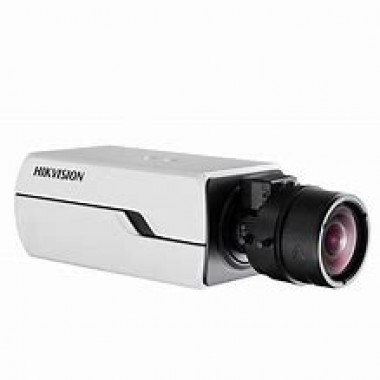

1.3 Megapixel CMOS ICR Network Box Camera - DS-2CD4012F-(A)(P)(W)

Up to 1280 x 1024 high resolution

HD 720p video (up to 60fps)

Smart Codec

DWDR, 3D DNR

Triple streams

On-board storage, up to 64GB

Smart Focus: ABF (-A)

Smart Facial Detection

Smart Audio Detection

Intrusion Detection

Two way audio, built-in Mic

Defog

P-Iris optional (-P)

People Counting

Camera :

Image Sensor : 2.54cm (1/3inch) progressive scan CMOS

Min. Illumination : Color: 0.01 lux@F1.2, AGC on B/W: 0.001 lux@F1.2, AGC on

Shutter time : 1s ~ 1/100,000s

Slow shutter : Yes

Lens mount : C/CS mount

Auto iris : DC drive (-P: P-Iris)

Day & night : ICR (Auto/Schedule/Alarm Trigger)

Digital noise reduction : 3D DNR

Wide dynamic range : DWDR

Smart Focus : Auto Back Focus *only for -A model

Compression Standard :

Video compression : H.264 / MPEG4 / MJPEG

H.264 codec profile : Baseline profile / main profile / high profile

Video bit rate : 32 Kbps ~ 16 Mbps

Audio compression : G.711 / G.726 / MP2L2

Audio bit rate : 64Kbps (G.711) / 16Kbps (G.726)

Image :

Max. resolution : 1280 x 1024

Frame rate : 50 Hz: 25fps (1280 × 1024), 25fps (1280 x 960), 50fps (1280 x 720) 60 Hz: 30fps (1280 × 1024), 30fps (1280 × 960),60fps (1280 x 720)

3rd stream : Independent setting, up to: 50Hz: 25fps (1280 x 1024), 60Hz: 30fps (1280 x 1024)

Image settings : Rotate mode, saturation, brightness, contrast, sharpness adjustable through client software or web browser

Backlight compensation : Yes, zone configurable

Picture overlay : 128 x 128, BMP 24bit, zone configurable

HLC : Yes

Defog : Yes

EIS : Yes

ROI : Support

Network :

Network storage : NAS (Support NFS, SMB/CIFS)

Alarm trigger : Intrusion detection, face detection, motion detection, tampering alarm, defocus, network disconnect, IP address conflict, storage exception, line crossing detection

Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

Security : User authentication, watermark, IP address filtering, anonymous access

System compatibility : ONVIF, PSIA, CGI, ISAPI

Interface :

Audio input : 1-ch 3.5mm audio interface, Mic in/Line in

Audio output : 1-ch 3.5mm audio interface

Communication interface : 1 RJ45 10M / 100M ethernet port, 1 RS-485 interface, 1 RS-232 interface

Alarm I/O : (1/1)

Video output : 1 Vp-p composite output (75 Ω / BNC)

On-board storage : Built-in micro SD/SDHC/SDXC card slot, up to 64GB

Reset : Yes

General :

Operating conditions : 30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)

Power supply : 24 VAC± 10%, 12 VDC ± 10%, PoE (802.3af )

Power consumption : Max. 6W (max. 9W with ICR on) -W: max. 7W (max. 10W with ICR on)

Dimensions : 69.8 × 58 × 145 mm (2.68inchx 2.56inchx 5.70inch)

Weight : 830g (1.83 lbs)
