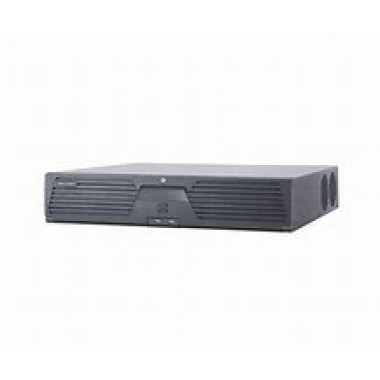

DeepinMind NVR - iDS-9632NXI-I8/4F

4ch Facial Recognition

Facial Image Library Management

320M Inbound bandwidth (200M with RAID)

up to 12MP resolution recording

Max 32 IP Cameras, 4K HDMI + 1080p HDMI and VGA

2 x USB 2.0 + 1 x USB 3.0

RS-232

RS-485

Keyboard

RAID0,1,5,10

8 x SATA

1 x eSATA interfaces

Alarm I/O: 16/4

48.26cm(19 inch) 2U Chassis

Face Detectionand Analytics :

Face picture library : 4 libraries Single library: 30, 000 pictures; Total: 50, 000 pictures

Face Capture : 4-ch IP cameras(HIKVISION/ONVIF/RTSP protocol)

Face picture comparison alarm : 6-ch face pictures comparison alarm;alarm linkage actions: recording, audio warning, notifysurveillance center, send Email

Face picture search : Search by picture is supported

Facial modeling capability : 8 pic/sec

Video/Audio input :

IP video input : 32-ch

Incoming bandwidth : 256 Mbps/200Mbps (when RAID is enabled)

Outgoing bandwidth : 200 Mbps

Video/Audio output :

Recording resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF

CVBS output (Optional) : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480

VGA1 /HDMI1 output resolution : VGA1: 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz HDMI1: 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

VGA2 /HDMI2 output resolution : 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Audio output : 2-ch, RCA (Linear, 1 KΩ)

Decoding :

Decoding format : H.265/H.265+/H.264/H.264+/MPEG4

Live view/Playback resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF

Synchronous playback : 16-ch

Capability : 4-ch @ 8 MP (30fps) / 16-ch @ 1080p (30fps)

Network management :

Network protocols : TCP/IP, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk :

SATA : 8 SATA interfaces

eSATA : 1 eSATA interface

Capacity : Up to 8TB capacity for each HDD

Disk array :

Array type : RAID0, RAID1, RAID5, RAID6, RAID10

External interface :

Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network interface : 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Serial interface : RS-232; RS-485; Keyboard

USB interface : Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0

Alarm in/out : 16/4 (8 optional)

General :

Power supply : 100 to 240 VAC, 50 to 60 Hz

Max. Power : 200 W

Consumption (without hard disk) : ≤ 70 W

Working temperature : -10 to +55° C (+14 to +131° F)

Working humidity : 10 to 90 %

Chassis : 48.26cm(19-inch) rack-mounted 2U chassis

Dimensions (W x D x H) : 445 x 470 x 90 mm (44.45cm(17.5 inch)x 46.99cm(18.5 inch) x8.89cm(3.5 inch))

Weight (without hard disk) : ≤ 10 kg (22 lb)
