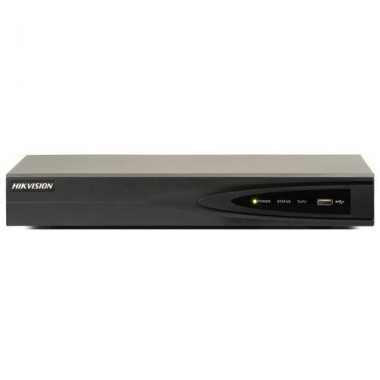

DS-7600NI-E1 Series NVR - DS-7604NI-E1

Product Code:  DS-7604NI-E1
Availability:  10
0 reviews  (0 reviews)   |   Write a review

Connectable to the third-party network cameras like like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY, Vivotek and

AVIO.

Up to 16 network cameras can be connected.

Support live view, storage, and playback of the connected camera with up to the resolution of 6 megapixels.

Simultaneous HDMI and VGA outputs at up to 1920×1080 resolution.

New GUI and support starting record with one key

Holiday recording

Reali

e instant playback for assigned channel during multi-channel display mode.

Up to 16-ch synchronous playback at 4CIF resolution.

Customi

ation of tags, searching, and playing back by tags.

Locking and unlocking record files.

Support HDD quota mode

different capacity can be assigned to different channel.

1 SATA hard disk can be connected.

1 self-adaptive 10M/100M/1000M network interface is provided

Support Hikvision DDNS (Dynamic Domain Name System)

Support network detection, including network delay, packet loss, etc.

Support enabling H.264+ to ensure high video quality with lowered bitrate.

Video/Audio input :

IP video input : 4-ch

Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1KΩ)

Network :

Incoming bandwidth : 40Mbps

Outgoing bandwidth : 80Mbps

Remote connection : 32

Video/Audiooutput :

Recording resolution : 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Frame rate : Main stream: 50 fps (P) / 60 fps (N)Sub-stream: 50 fps (P) / 60 fps (N)

HDMI/VGA output : 1-ch, resolution:1920 × 1080 /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720/60Hz, 1024 × 768 /60Hz

Audio output : 1-ch, RCA (Linear, 1kΩ)

Decoding :

Live view / Playback resolution : 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Capability : 4-ch@1080P

Hard disk :

SATA : 1 SATA interface for 1 HDD

Capacity : Up to 6TB for each disk

External interface :

Network interface : 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface

USB interface : 1 × USB 2.0 and 1 × USB 3.0

Alarm in/out (Optional) : 4 / 1

Others :

Power supply : 12V DC

Consumption (without hard disk) : ≤ 10W

Working temperature : -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)

Working humidity : 10 % ~ 90 %

Chassis : Standalone 1U chassis

Dimensions (W × D × H) : 315 × 230 × 45 mm (31.5 × 22.9 × 4.57 cm)

Weight (without hard disk) : ≤ 1 kg (2.2 lb)
