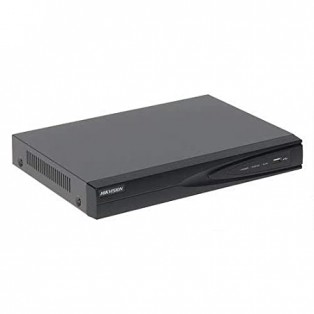

DS-7600NI-Q1 SERIES NVR - DS-7604NI-Q1

H.265+/H.265/H.264/H.264+ video formats

Connectable to the third-party network cameras

Up to 16 IP cameras can be connected HDMI/VGA simultaneous output (DS-7604NI-Q1)

HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1)

HDMI Video output at up to 4K (3840 × 2160) resolution

1 SATA interface connectable for recording and backup

H.265+ compression effectively reduces the storage space and costs by up to 75%

Video/Audio input :

IP video input : 4-ch Up to 8 MP resolution

Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network :

Incoming bandwidth : 40 Mbps

Outgoing bandwidth : 80 Mbps

Video/Audio output :

Recording resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output

VGA output resolution : 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz,1280 × 720/60Hz, 1024 ×768/60Hz; HDMI/VGAsimultaneous output

Audio output : 1-ch, RCA (Linear, 1 KΩ)

Decoding :

Decoding format : H.265/H.265+/H.264/H.264+/MPEG4

Live view / Playback resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous playback : 4-ch

Capability : 1-ch @ 8 MP / 4-ch @ 1080p/8-ch @ 1080p

Network management :

Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk :

SATA : 1 SATA interface

Capacity : Up to 6TB capacity for each disk

External interface :

Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

USB interface : 2 × USB 2.0

Alarm in/out : 4/1 (optional)

General :

Power supply : 12 VDC

Power : ≤ 18W

Consumption (without hard disk ) : ≤ 10 W

Working temperature : -10 to +55º C (+14 to +131º F)

Working humidity : 10 to 90 %

Chassis : 1U chassis

Dimensions (W × D × H) : 315 × 240 × 48 mm (31.5 × 23.88 × 4.83 cm)

Weight(without hard disk) : ≤ 1 kg (2.2 lb)
