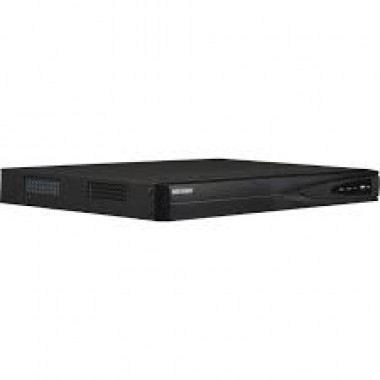

DS-7600NI-E2/8P series NVR - DS-7608NI-E2/8P

Connectable to the third-party network cameras like like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.

4/8/16/32 network cameras can be connected for different models.

Support live view, storage, and playback of the connected camera with up to the resolution of 6 megapixels.

Simultaneous HDMI and VGA outputs at up to 1920×1080 resolution.

New GUI and support starting record with one key.

Multiple recording types: manual, continuous, alarm, motion, motion | alarm, motion & alarm.

Realize instant playback for assigned channel during multi-channel display mode.

Customization of tags, searching, and playing back by tags.

Playback by sub-periods.

Locking and unlocking record files.

Support HDD quota mode

different capacity can be assigned to different channel.

Up to 2 SATA hard disks can be connected with up to 4TB capacity for each.

1 self-adaptive 10M/100M/1000M network interface is provided.

Up to 4/8/16 independent PoE network interfaces for different models.

Support Hikvision DDNS (Dynamic Domain Name System).

Support network detection, including network delay, packet loss, etc.

Support enabling H.264+ to ensure high video quality with lowered Bitrate.

Video/Audio input :

IP video input : 8-ch

Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1KΩ)

Network :

Incoming bandwidth : 80Mbps

Outgoing bandwidth : 80Mbps

Remote connection : 128

Video/Audiooutput :

Recording resolution : 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Frame rate : Main stream: 50 fps (P) / 60 fps (N)Sub-stream: 50 fps (P) / 60 fps (N)

HDMI/VGA output : 1-ch, resolution:1920 × 1080 /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720/60Hz, 1024 × 768 /60Hz

Audio output1-ch, RCA (Linear, 1kΩ)

Decoding :

Live view / Playback resolution : 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Capability : 8-ch@720P, 6-ch@1080P

Hard disk :

SATA : 2 SATA interfaces for 2 HDDs

Capacity : Up to 4TB for each disk

External interface :

Network interface : 1 RJ-45 10 /100 Mbps self-adaptiveEthernet interface

USB interface : 1 × USB 2.0 and 1 × USB 3.0

Alarm in/out (Optional) : 4 / 1

PoE :

Interface : 8 independent 100 Mbps PoE network interfaces

Max. Power : 120W

Supported : AF and AT

Others :

Power supply : 100~240V AC

Consumption (without hard disk) : ≤ 10W

Working temperature : -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)

Working humidity : 10 % ~ 90 %

Chassis : 48.3-cm rack-mounted 1U chassis

Dimensions (W × D × H) : 445 ×290 ×45mm (44.5 ×28.96 × 4.57 cm)

Weight (without hard disk) : ≤ 1 kg (2.2 lb)
