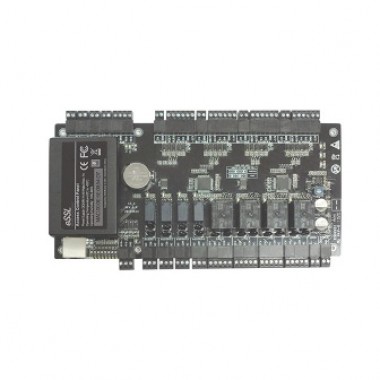

eSSL-C3-400

Four Door Access Controller Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system-all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3-400's versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The C3-400 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software

Features:

• 256 time Zones, 256 access levels
• Anti-passback function
• Interlock function , Linkage function
• Multi-Card Opening function, Remote door opening and closing
• Real-Time monitoring Via Web browser
• Video server integration
• 4 auxiliary input may be connected to infrared body detectors
• Fire alarms, smoke detectors etc.
• 4 auxiliary output may be connected to alarms, cameras,door bells etc.

Specifications:

• User Capacity : 30,000
• Event Buffer : 1,00,000
• CPU : 32bit MIPS CPU
• RAM : 32MB
• Flash Memory : 256 MB
• Power/Current : DC 9.6V-14.4V, Rated Max. 1A
• Communication : RS485, TCP/IP
• LED Indicator : Yes, LED indication for communication, power status and punch card
• Baud rate : 38400 BPS(Recommended), 9600 BPS,19200 BPS(Selectable)
• Operating Temperature : 0°C - 55°C
• Operating Humidity : 10% to 80% relative humidity non-condensing
• Dimension(mm) : 218(W) x 106(H) (Single board) 345(W) x 275(H) x 70(D)(With power supply and metal box)
• Support : Proximity /Mifare / HID Readers
• Options : Wiegand Readers - 4, RS 485 Readers - 8

Technical Sheet: eSSL-C3-400
