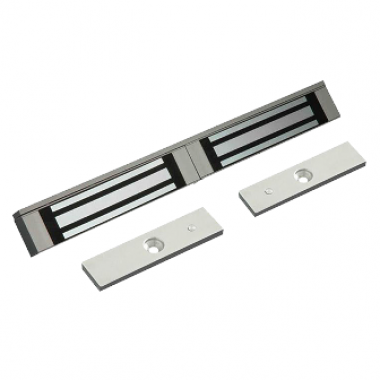

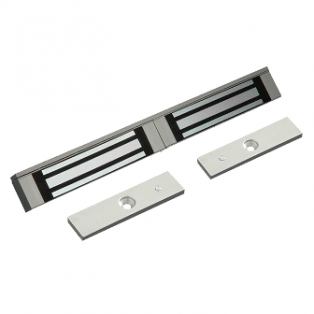

eSSL Double Door Electromagnetic Lock - ES-230GSD

Product Code:  ES-230GSD
Availability:  10
0 reviews  (0 reviews)   |   Write a review

Model: ES-230GSD

The eSSL Double Door Electromagnetic Lock–ES–230GD consists of an electro magnet and a steel plate which are mounted onto the door frame and to the top of the door respectively. The door will be strongly bonded when the magnet is energized, by the means of electric supply, holding the steel plate. Instant release is possible when power supply is cut off making it most ideal in emergency escape situations.


  • Magnet (mm): 250 x 42 x 26 (LxWxH)
  • Armature Plate (mm): 180 x 38 x 11 (LxWxH)
  • Current: 400 MAh
  • Power: 12V
  • Holding Capacity: 230 Kgs
  • Holding Force: 600 LBS
  • Temperature: 10°C – 55°C
  • Finish: Zinc
  • Operating Humidity: 0%-95% (Non-Condensing)
  • Optional Accessories: L-Bracket, U-Bracket for Glass Door, ZL-Bracket

Suitable for: Wooden Door, Glass Door, Aluminum Door & Fireproof Door


  • Green/Red LED Indication for Lock Status
  • Design with No Mechanical Bolt
  • Voltage and Current Spike Protection PCB
  • Request-to-Open
  • Auto-Relock if No Action
  • Silent Operation with no humming or buzzing

Technical Sheet: ES-230GSD
