eSSl Electromagnetic Lock - 600LBS-W-FD

Brand:  eSSL Security
Product Code:  eSSl-600LBS-W-FD
Availability:  10
0 reviews  (0 reviews)   |   Write a review

Model: eSSl-600LBS-W-FD

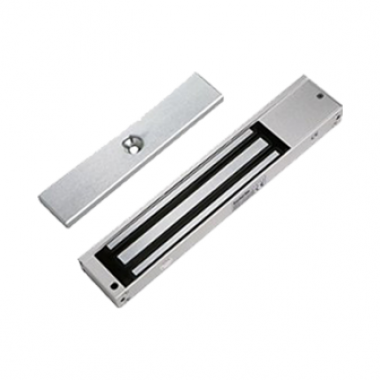

The eSSL Electromagnetic Lock–600LBS–W–FD EM Lock with Feedback are designed to meet fire/life safety applications by providing an auxiliary locking mechanism that has no moving parts to bind or wear out for trouble free operation. The EM Lock with Feedback will ensure inhibited release at all times where they have become extremely prevalent in applications other than fire/life safety. EM Lock with Feedback is Suitable for access controlled & secure areas within buildings.


  • Magnet (mm): 250 x 42 x 26 (LxWxH)
  • Armature Plate (mm): 180 x 38 x 11 (LxWxH)
  • Mounting Plate (mm): 250 x 25 x 6 (LxWxH)
  • Current: 500 MAh
  • Power: 12V
  • Holding Capacity: 230 Kgs
  • Holding Force: 600 LBS
  • Temperature: 10°C – 55°C
  • Operating Humidity: 0%-95% (Non-Condensing)
  • Optional Accessories: L-Bracket, U-Bracket, ZL-Bracket
  • Suitable for: Wooden Door, Glass Door, Aluminum Door & Fireproof Door


  • Green/Red LED Indication for Lock Status
  • Design with No Mechanical Bolt
  • Voltage and Current Spike Protection PCB
  • Superior Strength Aluminum Alloy, Stainless Steel Bolt
  • Silent Operation with no humming or buzzing

Technical Sheet: eSSl-600LBS-W-FD
