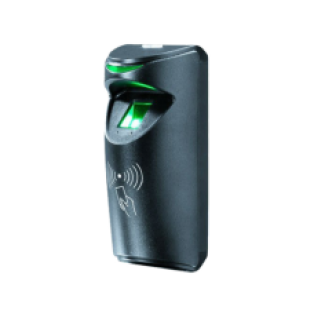

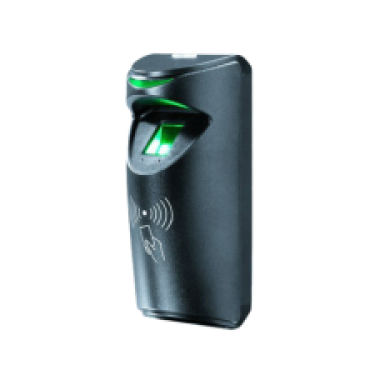

F11 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F11 features the fastest commercial-based fingerprint matching algorithm and high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP communication make sure the data transition between the device and the PC can be easily done within several seconds.

• Users : 1500 Fingerprints
• ID Card Capacity : 10,000
• Sensor : 500 DPI Optical sensor
• Communication : RS232, RS485, TCP/IP, USB-host
• Access Control Interface : 3rd party electric lock,exit button,alarm
• Wiegand Signal : Output
• Identification Speed : <=1sec
• FAR : <=0.0001%
• FRR : <=1%
• Operating Temperature : 0°C - 45°C
• Operating Humidity : 20% - 80%
• Dimension : 66.4 x 153 x 61 mm

Techncial Sheet: eSSL-F11
