eSSL Fingerprint RFID And Password Slave Reader - FR 1300

Brand:  eSSL Security
Product Code:  eSSL FR1300
Availability:  10
0 reviews  (0 reviews)   |   Write a review

Model: eSSL FR1300

eSSL FR1300 RS485 Slave Reader. It reads fingerprint, RFID and passwords.

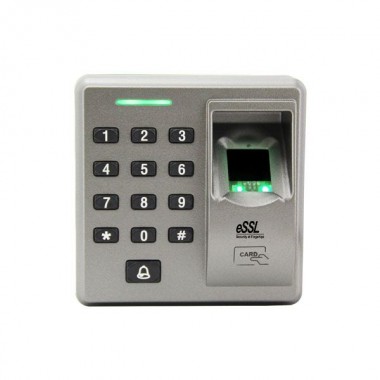

The eSSL FR1300 is a fingerprint reader and a card slave reader. The device is compact, elegant and simple to use. You can fit this card & fingerprint authentication device into any space and it fits as neatly. The device has large buttons for the keypad enabling one to clearly read and execute the command or password for authentication. To the right of the keypad is the fingerprint reader for biometric identification.


  • Communication: RS485
  • Built-in Card Reader: 125 KHz EM Card Reader
  • Optional Mifare Card Reader
  • Optional Function: Mifare Card Module
  • Power Supply: DC 12V
  • Operating Temperature: 0°C to 45°C
  • Operating Humidity: 20% - 80%
  • Dimension (mm): 88.0mm x 88.0mm x 33.6mm


  • Energy Saving, Auto-Sleep Infrared Fingerprint Sensor
  • Built-in RFID Card Reader
  • Supports Password when working with in-BIO Series Control Panels
  • LED and Buzzer Prompt
  • With Doorbell Functions
  • 86mm x 86mm socket installation
  • Easy Operations

Technical Sheet: eSSL FR1300
