eSSL Fingerprint Time and Attendance Biometric Access Control System - INPULSE+

Brand:  eSSL Security
Product Code:  eSSL INPULSE+
Availability:  10
0 reviews  (0 reviews)   |   Write a review

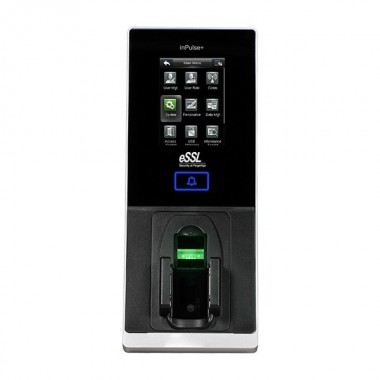

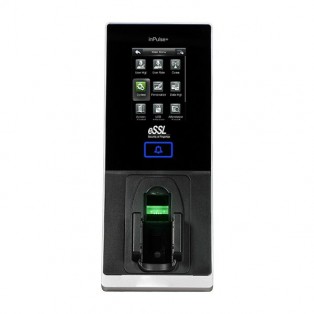

eSSL INPULSE+ fingerprint time and attendance biometric access control system.

The eSSL inPulse+ is a high security finger vein recognition system with an interactive user Interface. It supports 4 verification modes – finger vein, card, password just like the eSSL inPulse+ and has the additional capability to verify fingerprint as well. It has a modern 2.8”-inch TFT LCD color touch screen installed to operate the user smooth interface. The machine has a staggering capacity of 1,500 Finger Vein & Fingerprint Capacity. The machine has slender design which can fit into any working space with ease. Install it now and monitor access control with great ease and reliability.

  • Finger Vein Capacity: 1,500
  • Card Capacity: 2,000


  • Finger Vein Capacity: 1,500
  • Fingerprint Capacity: 1,500
  • Card Storage : 2,000
  • Transaction Storage: 1,00,000
  • Communication : RS232, RS485, TCP/IP, USB-Host/Client, Wiegand Input, Security Relay Box
  • Processor: 1.2 GHz Dual Core CPU
  • Memory: 128MB RAM
  • ROM: 256MB Flash
  • Display : 2.8” TFT LCD Screen
  • EM Reader / Mifare (Optional)
  • Hi-Fi Voice & Indicator, Tamper Switch Alarm
  • Access Levels, Groups, Holidays, DST, Bell Schedule, Duress Mode (Password)
  • Anti-Passback, Record Query, Custom Wallpaper & Screensaver
  • Special Functions: Multiple Verification Mode
  • Lock Relay Output, Alarm Output/ Auxiliary Input
  • Exit Button / Door Sensor / Door Bell Output
  • Compatibility: Wiegand Slave Reader, Bio-Security Software,
  • Algorithm: Vein v3.0 & Finger v10.0
  • Power Supply : 12V DC, 0.50 mAh
  • Operating Temperature: -10°C to 50°C
  • Dimension(mm): 201.7 x 85.0 x 102.7


  • Modern Design & Interactive UI
  • High Security Finger Vein Recognition
  • Multiple Verification Modes: Finger Vein/ Fingerprint / Card / Password
  • TFT-LCD Color Touch Screen
  • Simple Management & Scalability

Technical Sheet: eSSL INPULSE+
