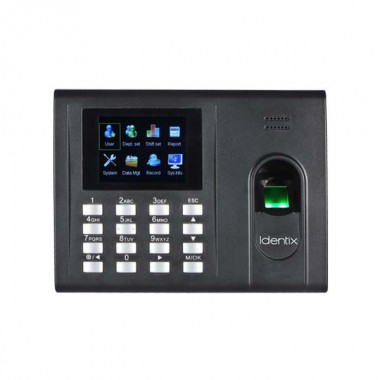

The eSSL Identix K30 is a fingerprint time & attendance machine with access control system. It has a modern build with a matte black finish and 2.8-inch TFT Screen. It comes with an built-in battery for the user’s requirement.

The finger reader is capable of storing 1,000 templates and having a card capacity of 1,000 as well. The fingerprint recognition system is equipped with a 500DPI Optical Sensor which gives identification speeds of less than equal to 1 second.

The relay for access control is set at 12V. The device also has a SSR Recorder, making it dual mode – SSR Mode or Software Mode. It is highly compatible with both Smart Office Desktop & Etime Track Lite Desktop. Major Applications such as Time & Attendance, School Attendance, Canteen Management and Production Management run smoothly.

Technical Specification

Storage Capacity:

• Fingerprint Templates : 1000
• Card Storage : 1000
• Transaction Storage : 80000
• Card Reader : Yes

Biometric:

• Fingerprint Sensor : 500 DPI Ottical Sensor
• FAR : <=0.0001%
• FRR : <=1%
• Identication speed  : <=1 sec
• Algorithm Ver : 10

Audio/Visual:

• Display : 2.8” Color TFT
• Keypad : 4 x 4 Keypad
• LED Indicator : Green/Red
• Schedule Bell/Speaker : Mini Speaker

Communication:

• Communication : TCP/IP, USB-host
• Push data : NA
• Standard features : Schedule Bell,Self Service Query,SSR Recorder,Automatic Status Switch,DST,T9 Inupt

Power & Environment:

• Power Supply : 12V DC, 1AMP
• Operating Temprature : 0oC to 45oC
• Operating Humidity : 20% -80%
• Dimension : 185 x 140 x 30 mm

Access Control:

• Wiegand : NO
• Relay : 12V
• Support Fire Alarm : NO
• Door Sensor : NO
• Anti Passback : NO
• Door Bell : NO

Exit Readers:

• Support exit readers : Push Button

Optional:

• Battery : Yes
• Card readers : NO
• Communication : NA
• Dual Mode : Either SSR Mode or Software Mode

Compatibility

Compatible Software & SDK:

• Smart office suite desktop
• Etime track lite desktop

Major Applications:

• Time & Attendance , Canteen management, School attedance
• Production Management, Gym & clubs

​Techncial Sheet: eSSLK30

Live Demo and Installation of eSSL Identix K30
