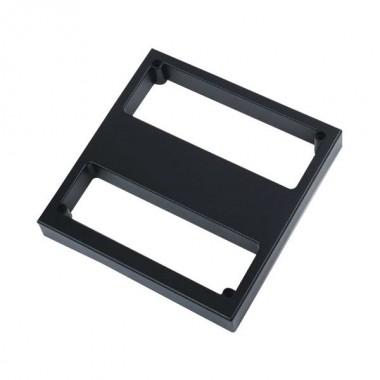

eSSL Long Range Proximity Card Reader - KR1000

Model: eSSL KR1000

eSSL KR1000 long range 125KHz Proximity card reader.

The eSSL KR1000 is a Long Range 125 KHz Proximity Card Reader. It has a reading range of up to 2’ which makes it a practical and convenient reading device. The 26 Wiegand Output is phenomenal for the size and delivers like no other. Its operative indoors and outdoors since it is Waterproof with an IP65 Rating.

SPECIFICATIONS:

• Reading Range: Up to 60cms
• Reader Time: than 200ms
• Power Supply: DC 10V – 15V / Max 300mAh
• Operating Temperature: -20°C to 55°C
• Operating Humidity: 15% - 90%
• Color: Black
• Material: ABS
• Dimension (mm): 240.0mm x 235.0mm x 35.0mm
• Weight: 1.20 kg
• IP Rating: IP65

FEATURES:

• 125KHz Proximity
• 26 Wiegand Output
• Indoor / Outdoor Operation
• Solid Epoxy Potted
• Waterproof IP65
• Reverse Polarity Protection

Technical Sheet: eSSL KR1000
