eSSL Mid-range Biometric Integrative Reader - MR6011A

Brand:  eSSL Security
Product Code:  eSSL MR6011A
Availability:  10
0 reviews  (0 reviews)   |   Write a review

Model: eSSL MR6011A

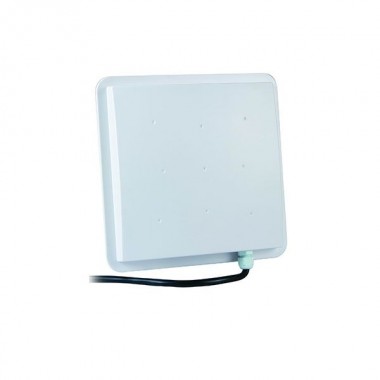

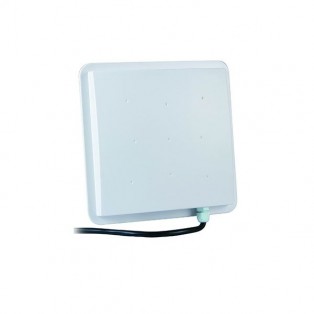

eSSL MR6011A UHF Mid-range Integrative Reader.

The eSSL MR6011A is a UHF Mid-range Integrative Reader. It’s an ideal device for any setup especially working for Logistics and Warehousing, Production Lines, Libraries, etc. The device is a medium sized device with white body that weighs 2 kilograms. The Reading mode gives various options such as Timing or Touch and is also software programmable. It has a maximum reading range of 12 meters. Installing this in production lines, intelligent parking management, etc. smoothens out the flow channel and makes it more efficient.


  • Protocol: ISO18000-6B, ISO18000-6C (EPC GEN2)
  • Frequency Range: Standard ISM 902~928 MHz OR ISM 865~868MHz, other frequency available
  • Operation Mode: FHSS
  • RF Power: 0~30Dbm, Software Adjustable
  • Reading Speed: Software Programmable
  • Average Reading per 64Bits:,6ms
  • Reading Mode: Timing or Touch, Software Programmable
  • Data Ports: Standard, Wiegand 26/34, RS485, RS232, Software Programmable
  • Custom-Made: Wi-Fi, RJ45
  • Data Input Port: Trigger Input One Team
  • Reading Range: Max. - 12 Mtrs.
  • Reading Clue: Buzzer
  • Antenna: Built-In Line Polarized Antenna
  • Gain: 12 dBi
  • Power Supply: DC +9V (Power Adapter)
  • Dimensions (mm): 440mm x 440mm x 50mm
  • Operating Temperature: -20°C~ 80°C
  • Weight: 2 kgs.


  • Logistics and Warehouse Management
  • Intelligent Parking Management
  • Productive Lines Management
  • Use widely in Library, Consumption, Time Management

Technial Sheet: eSSL MR6011A
