eSSL Mid-range Biometric Integrative Reader - MR6021A

Brand:  eSSL Security
Product Code:  eSSL MR6021A
Availability:  10
0 reviews  (0 reviews)   |   Write a review

Model: eSSL MR6021A

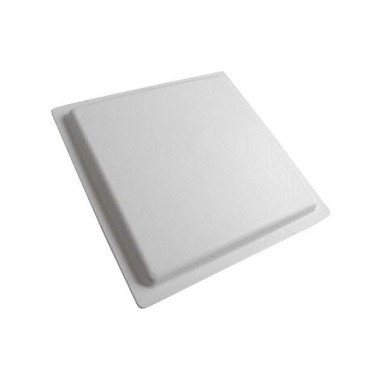

eSSL MR6021A UHF Mid-range Integrative Reader.

The eSSL MR6021A is a UHF Mid-range Integrative Reader. It is the next generation to the MR6011A which too, was a highly capable device. It’s an ideal device for any setup especially working for Logistics and Warehousing, Production Lines, Libraries, etc. The device is a smaller sized device to its predecessor with white body that weighs 1 kilogram. The Reading mode gives various options such as Timing or Touch and is also software programmable. The MR6021A has an impressive reading range maximum up to 6 meters. Installing this in production lines, intelligent parking management, etc. smoothens out the flow channel and makes it more efficient. It has a Reading Clue Buzzer and LED which gives twice the assurance you need.


  • Protocol: ISO18000-6B, ISO18000-6C (EPC GEN2)
  • Frequency Range: Standard ISM 902~928 MHz OR ISM 865~868MHz, other frequency available
  • Operation Mode: FHSS
  • RF Power: 0~30Dbm, Software Programmable
  • Reading Speed: Software Programmable
  • Average Reading per 64Bits:, 6ms
  • Reading Mode: Timing or Touch, Software Programmable
  • Data Ports: Standard, Wiegand 26/34, RS485, RS232, Software Programmable
  • Custom-Made: Wi-Fi, RJ45
  • Data Input Port: Trigger Input One Team
  • Reading Range: Max. - 6 Mtrs.
  • Reading Clue: Buzzer and LED
  • Antenna: Built-In Line Polarized Antenna
  • Gain: 7 dBi
  • Power Supply: DC +9V (Power Adapter)
  • Dimensions (mm): 240mm x 240mm x 30mm
  • Operating Temperature: -20°C~ 80°C
  • Weight: 1 kg.


  • Logistics and Warehouse Management
  • Intelligent Parking Management
  • Productive Lines Management
  • Use widely in Library, Consumption, Time Management

Technical Sheet: eSSL MR6021A
