eSSL-ML-10

Model: eSSL-ML-10

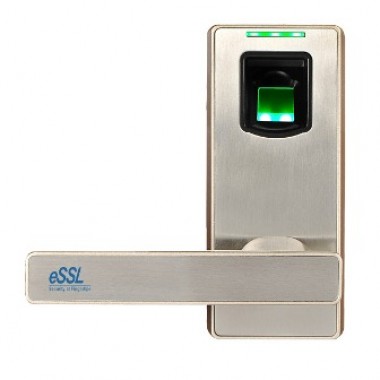

The eSSL – ML10 is a smart lock with the American Standard Single latch with single latch. The design of the door lock system is in a brushed metal finish, making it look highly elegant and minimalistic. The door lock system is perfect for someone who wants a simple yet classy design for their premises. The intelligent fingerprint door lock system is capable of storing up to 90 fingerprints.

The door lock system has a capacitive sensing technology – touch to open. Ease to install the program & use with no wiring requirement makes it a breeze for many. The eSSL M10 with the independent clutch motor design, under the patent protection is something that makes it distinct than the rest.

SPECIFICATIONS:

• Material: Zinc Alloy
• Mortise: American Standard Single Latch
• Fingerprint Sensor: 500 DPI Optical Sensor
• Fingerprint Capacity: 90
• User Capacity: 90
• Admin: 10
• Normal User: 60
• Temporary User: 20
• Identification Speed: Less than 1.50 seconds
• FAR: Less than 0.0001%
• FRR: Less than 1%
• Operating Temperature: -20°C – 55°C
• Power Supply: 4 x 1.5V AA Alkaline Battery
• Backup Unlock Mechanism: Emergency Battery / Mechanical Key
• LED Indicator: Red / Green
• Door Thickness (mm): Standard: 39 to 46 / 47 to 54
• Door Thickness (mm): Optional: 30 to 38 / 55 to 60
• Backset: 60mm or 70mm (adjustable)
• Dimensions Front (mm): 155 x 69 x 35 (L x W x D)
• Dimensions Back (mm): 155 x 69 x 25 (L x W x D)

Technical Sheet: eSSL-ML-10

Live Demo and Installation of eSSL-ML-10
