eSSL Multi Biometric Time And Attendance Access Control Systems - uFace602

Brand:  eSSL Security
Product Code:  eSSl-uFace602
Availability:  10
0 reviews  (0 reviews)   |   Write a review

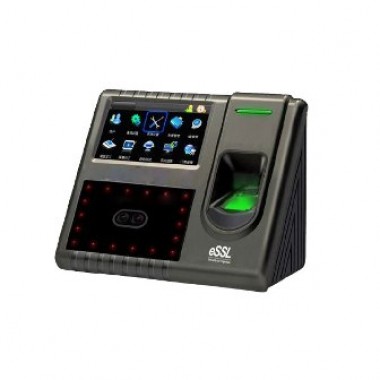

The eSSL uFace 602 is a multi-biometric Identification Time & Attendance as well as Access Control Terminal. The multi-biometric device is a versatile machine that delivers promptly and efficiently at every instance. It has a face reader, fingerprint reader and optional card storage. It has various options hence delivering as per required. The device has a highly capable High-Resolution Infrared Camera which is state-of-the-art technology for face recognition devices. The eSSL is has a brilliant battery backup for times of power failure giving the user the edge in any circumstance. The device with its 1.0 GHz CPU is great at processing giving a lighting identification speed of less than 0.50 seconds. It has a 4.3”-inch TFT touch screen. It also contains a Keypad with 6 function key with 1 power button. The transaction storage capacity of 1,00,000 is also huge keeping in mind the face capacity.


  • Face Capacity: 1,200 (3,000 Optional)(I:N)
  • Fingerprint Templates: 2,000
  • Card Storage: 10,000 (Optional)
  • Transaction Storage: 1,00,000
  • Card Reader: Yes
  • CPU: 1.0 GHz
  • Fingerprint Sensor: 500 DPI Optical Sensor
  • FAR:<=0.0001% / FRR: <=1%
  • Identification Speed: Less than equal to 0.50 second
  • Algorithm Ver: 10.0
  • Display: 4.3” TFT Touch Screen
  • Keypad: 4 x 4 with 5 function keys
  • LED Indicator: Green/Red
  • Schedule Bell/Speaker: Mini Speaker
  • Communication: TCP/IP, RS232/485, USB-Host
  • Push Data: Yes
  • Power Supply: DC 12V, 3A
  • Operating temp: 0°C - 45°C
  • Operating Humidity: 20% - 80%
  • Dimension(mm): 194.1 x169.0 x111.0 (WxHxD)
  • Wiegand: Output
  • Relay: 12V relay for Lock EM Lock, Bolt Lock or Strike Lock
  • Support Fire Alarm: No
  • Door Sensor: Yes
  • Anti-Pass back: No
  • Door Bell: No
  • Support Exit Readers: No
  • Battery: 7.4V, 2,000 mAh Battery Backup


  • Compatible with Multi-Door controllers via Wiegand
  • External Speakers output available (Optional)
  • External Bulb output available (Optional)
  • Support External Printer


  • Smart Office Suite Desktop & Web
  • E-time track lite Desktop & Web
  • SDK for desktop applications
  • Web based device Managers/ePush server using Push data. Helps developers & integrators
  • Supports 3RD Party Payroll /HRMS/ERP & Other applications

Techncial Sheet: eSSL-uFace602
