eSSL Proximity RFID Milfare Card Reader - KR101E/M
Brand: eSSL Security
Model: eSSL KR101E/M

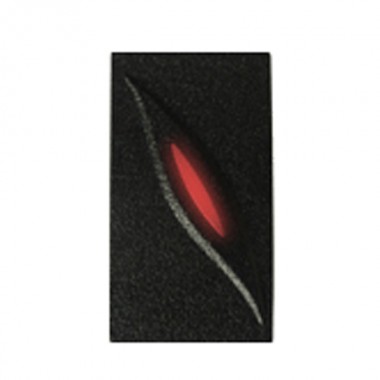

eSSL KR101E/M proximity and milfare card reader.
The eSSL KR101 E/M Card Reader is a smart piece of engineering that is well crafted to suit any office setup. It is compact in size to the KR100 E/M. The two variations are the Proximity Card Reader, the KR101E and the KR101M for the Mifare Card Reader. The device is a modern design card reader with capable specifications to back the stealth design.
- KR101E: 125KHz Proximity Card Reader
- KR101M: 13.56MHz Mifare Card Reader
- Read Range: KR101E – Up to 10 Cms.
- Read Range: KR101M – Up to 5 Cms.
- Reading Time (Card): Less than 300 milliseconds
- Power/Current: DC 6-14V / Max 70mA
- Input Port: 2ea ( External LED Control, External Buzzer Control)
- Output Format: 26-Bit Wiegand (default) / 34-Bit Wiegand (default)
- LED Indicator: 2-Color LED Indicators (Red & Green)
- Beeper: Yes
- Operating Temperature: -20°C to 65°C
- Operating Humidity: 10% to 90% relative humidity non-condensing
- Color: Black
- Dimension (mm): 77.5mm x 42.8mm x 16.5mm
- Weight: 50 g
- IP Rating: IP65
Technical Sheet: eSSL KR101E/M
