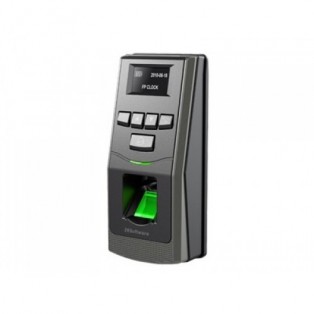

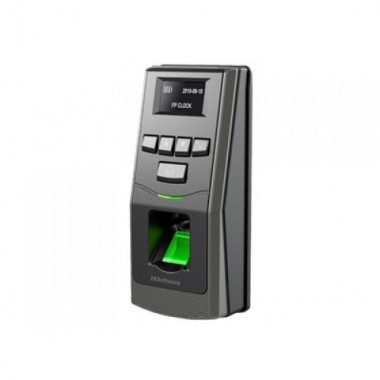

eSSL F6 is a standalone fingerprint Access Control system, It could store 500 fingerprint templates and 30,000 transaction records. Reliable, durable and highly accurate Fingerprint sensor with the latest version of algorithm which provides less than 1 second user recognition.

It Works without a computer. Complete setup and programming of the device can be done via keypads and inbuild softwares. Relay Outputs for electric lock and alarm. Inputs for door sensor and exit switch. Wiegand output for connecting to fingerprint access control panel and RS 485 communication for connecting to a Computer.Backup can be taken to the SD Card and can be transferred to another reader in the absence of PC Connectivity. Internal Proximity Card / Mifare Card reader allows dual factor authentication for access control.

Features & Specification:

• User Capacity : 500
• Transaction Storage : 30,000
• Sensor : 500 dpi Optical Sensor
• Communications : RS485, SD Card
• Wiegand Signal : Input ⁄ Output
• Access Control Interface : 3rd party electric lock, door sensor, exit button, alarm, Door Bell
• Identification time : ≤1 Second
• FAR : ≤0.0001%
• FRR : ≤1%
• Operating Temperature : 0°C - 45°C
• Operating Humidity : 20%-80%
• Optional Function : ID / Mifare Card
• Power : 12V DC, 3A
• LCD : B & W LCD Screen
• Language : English

Techncial Sheet: eSSL-F6
