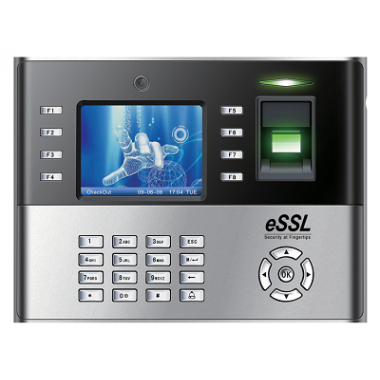

IClock990 time attendance and access control terminal features 10.0 fingerprint algorithm for fast and accurate fingerprint identification. It can manage 10,000 templates within 1 second (I: N identification). IClock990 features high performance, high image quality optical fingerprint sensor. The patented optical sensor is resistant to scratches, impact, vibration and electrostatic shock. The iClock990 can be used in multi factor authentication that supports fingerprint, password, proximity and mifare card. It comes with standard TCP/IP, RS-232/485, USB-host, USB-client and optional Wi-Fi and GPRS connectivity and battery backup.

Features & Specifications:

• Users : 10,000 / 50,000 (Optional) Fingerprints
• Card Capacity : 10,000
• Transactions : 2,00,000 Logs
• Sensor : 500 DPI Optical Sensor
• CPU : 32 bit Microprocessor - 800 MHz
• Display : 3.5” TFT
• Identification Speed : <=1 sec
• FAR : <= 0.0001%
• Dimension(W x H x D) : 212 x 159 x 45 mm
• Wiegand : I/O 26 bit
• FRR : <=1%
• Communication : RS232, RS485 , TCP/IP
• USB : Host & Client 2.0 Port
• Function keys : 8
• Power : 12V DC, 400mA
• Operating Temperature : 0°C - 45°C
• Operating Humidity : 20% - 80%
• Access Control Interface : Supports Exit Reader : KR 500, KR503, 101HE and F12 50 time zones, 5 groups, 10 time combinations

​Technical Sheet: eSSL- Iclock990
