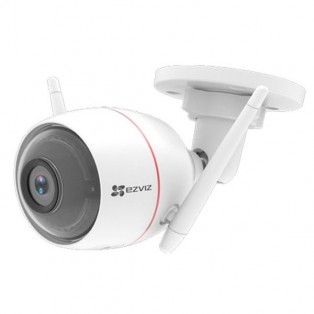

EZVIZ 1MP CS-CV310-A0-3B1WFR Wifi Bullet Camera

Compression

Video Compression :- H.264

H.264 Type :- Main Profile

Video Bit Rate :- HD; balance; and fluency. Adaptive bit rate.

General

Power Supply :- DC 12V±10%

Weight :- 326g

IR Range :- Max. 30 meters

IP Grade:- IP66

Dimensions (inch) :- 150.44 x 85.80 x 71.64

Operating Conditions :- (-30ºC ~ 60ºC ), humidity 95% or less ( non-condensing)

Power Consumption :- Max. 6W

Network

Smart Alarm:- Intelligent motion detection

Protocol:- EZVIZ Cloud Proprietary Protocol

Interface Protocol:- EZVIZ Cloud Proprietary Protocol

General Function :- Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

One-key configuration :- Smart Config (Wi-Fi One Push Configuration)

Wi-Fi

Standard:- IEEE802.11 b/g/n

Frequency Range :- 2.4GHz ~ 2.4835 GHz

Transmission Rate :- 11b: 11Mbps,11g: 54Mbps,11n: 150Mbps

Security :- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Channel Bandwidth :- Support 20MHz


BLC :- Support

Frame Rate :- 50Hz @ 25fps, 60Hz @ 30fps; adaptive frame rate of network transmission

Max. Resolution :- 1920 × 1080, support dual-stream

Image setting :- Brightness, contrast, saturation, etc. (Configure via EZVIZ Studio)

Interface

Storage :- Support Micro SD cared (Max. 128GB)

Wired network :- A RJ45 Ethernet Port, adaptive rate of 10/100M

Camera

Lens :- 2.8mm@ F2.2, Horizontal angle: 103° Diagonal angle: 118° 4mm@ F2.0, Horizontal angle: 87° Diagonal angle: 104° 6mm@ F2.0, Horizontal angle: 54° Diagonal angle: 62°

Lens Mount:- M12

Day & Night :- IR cut filter

DNR :- 3D DNR

WDR :- Digital WDR

Shutter :- Self-adaptive shutter

Download Catelog Sheet :-
