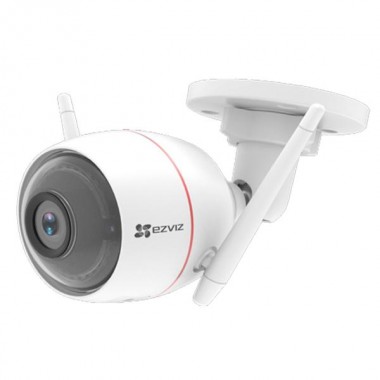

Ezviz 2MP CS-CV310-A0-1B2WFR(2.8mm) Wifi bullet Camera

camera

Image sensor :- 1/2.7”Progressive Scan CMOS

Lens :- 2.8mm@ F2.2, Horizontal angle: 103° Diagonal angle: 118°

WDR :- Digital WDR

Day & Night :- IR cut filter

DNR :- 3D DNR

Lens Mount:- M12

Shutter Speed :- Self-adaptive shutter

Minimum illumination:- 0.02 lux @(F2.0,AGC ON) ,0 Lux with IR

Compression

Video Compression:- H.264

H.264 Type:- Main Profile

Video Bit Rate :- HD; balance; and fluency. Adaptive bit rate

General

Power Supply :- DC 12V±10%

Weight :- 326g

IR Range :- Max. 30 meters

Dimensions (mm) :- 150.44 x 85.80 x 71.64

Power Consumpon:- Max. 6W

Operang Condions :- (-30ºC ~ 60ºC ), humidity 95% or less ( non-condensing)

IP Range:- IP66

Network

Smart Alarm:- Intelligent motion detection

Protocol:- EZVIZ Cloud Proprietary Protocol

Interface Protocol:- EZVIZ Cloud Proprietary Protocol

One-key configuraon:- Smart Config (Wi-Fi One Push Configuration)

General Funcon:- Flicker filter, dual-stream, heart beat, mirror image, password protection, watermark

Wi-Fi

Standard:- IEEE802.11 b/g/n

Frequency Range:- 2.4GHz ~ 2.4835 GHz

Transmission Rate:- 11b: 11Mbps,11g: 54Mbps,11n: 150Mbps

Security:- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Channel Bandwidth:- Support 20MHz


BLC:- Support

Frame Rate :- 50Hz @ 25fps, 60Hz @ 30fps; adaptive frame rate of network transmission

Max. Resolution :- 1920 × 1080, support dual-stream

Image setting :- Brightness, contrast, saturation, etc. (Configure via EZVIZ Studio

Download Catelog Sheet :-
