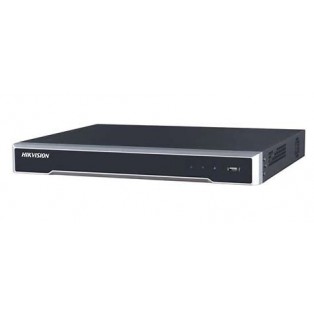

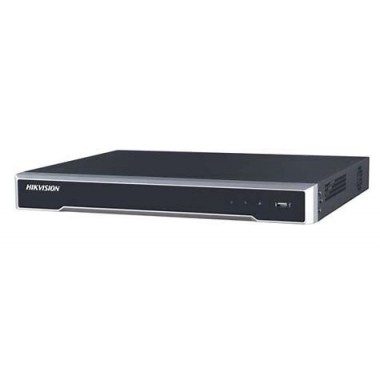

(Version 3.0) - DS-7608NI-K2

Professional and Reliable :

Dual-OS design to ensure high reliability of system running

ANR technology to enhance the storage reliability when the network is disconnected

HD Input :

H.265/ H.265+/H.264/H.264+/MPEG4 video formats

Connectable to the third-party network cameras

Up to 32 IP cameras can be connected

Recording at up to 12 MP resolution

Supports live view, storage, and playback of the connected camera at up to 12 MP resolution

HD Output :

HDMI and VGA independent outputs provided

HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage :

Up to 2 SATA interfaces connectable for recording and backup

Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format

HD Transmission :

1 self-adaptive 10 M/100 M/1000 Mbps network interface

Various Applications :

Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) which provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing bandwidth)

Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.

Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized

VCA detection alarm is supported

Instant playback for assigned channel during multi-channel display mode

Smart search for the selected area in the video; and smart playback to improve the playback efficiency

Supports HDD quota and group modes; different capacity can be assigned to different channels

Hik-Connect for easy network management

Video/ Audio input :

IP video input : 8-ch

Incoming bandwidth : 256 Mbps

Outgoing bandwidth : 256 Mbps

Video/ Audio output :

HDMI output resolution : 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA output resolution : 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio output : 1-ch, RCA (Linear, 1 KΩ)

Decoding :

Decoding format : H.265/H.265+/H.264/H.264+/MPEG4

Recording resolution : 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF /2CIF/CIF/QCIF

Synchronous playback : 8-ch

Capability : 2-ch @ 8MP (25fps) / 4-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network management :

Network protocols : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Hard disk :

SATA : 2 SATA interfaces

Capacity : Up to 10 TB capacity for each HDD

External interface :

Two-way audio : 1-ch, RCA (2.0 Vp-p, 1kΩ)

Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

USB interface : Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/out : 4/1

General :

Power supply : 12 VDC

Power : ≤ 40 W

Consumption (without hard disk) : ≤15 W

Working temperature : -10 °C to 55 °C (14 °F to 131 °F)

Working humidity : 10 to 90 %

Dimensions (W × D × H) : 385 × 315× 52 mm (15.2" × 12.4" × 2.0")

Weight (without hard disk) : ≤ 1 kg (2.2 lb)
